Group,

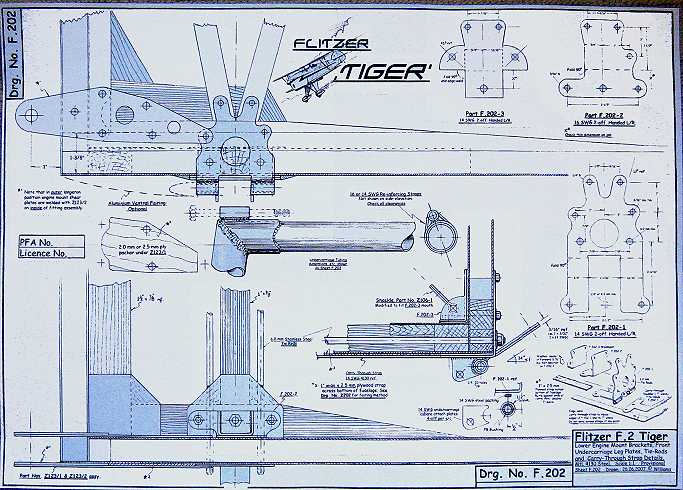

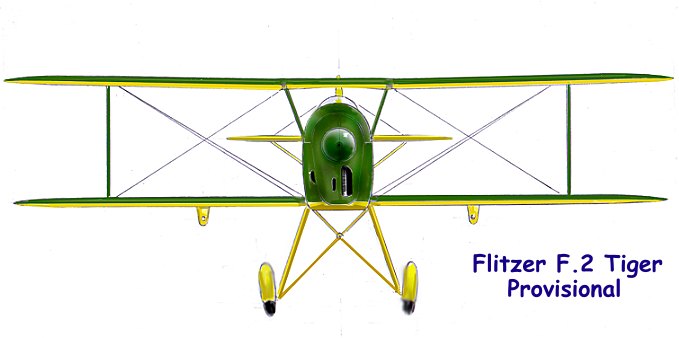

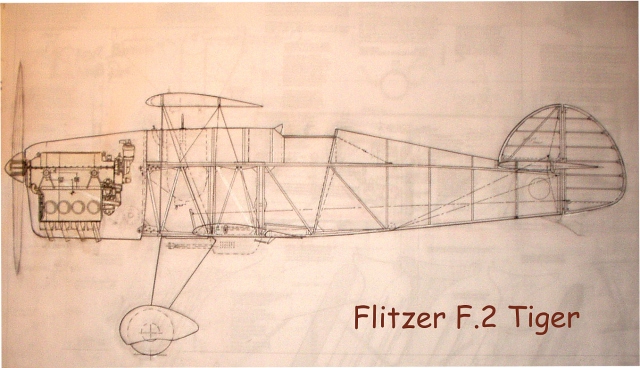

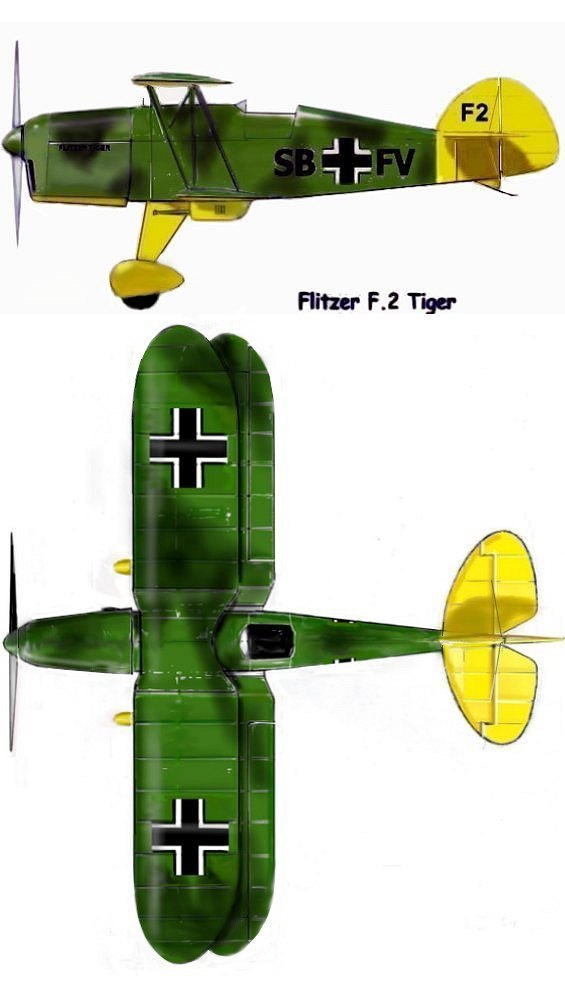

Here's the first detailed F.2 Tiger drawing for interest.

It shows the lower engine mount lug and forward undercarriage leg bracketry, tie rods, flying wire carry-through etc. Unfortunately it has to be reduced to this size in order to be acceptable for dissemination through the site.

Cheers,

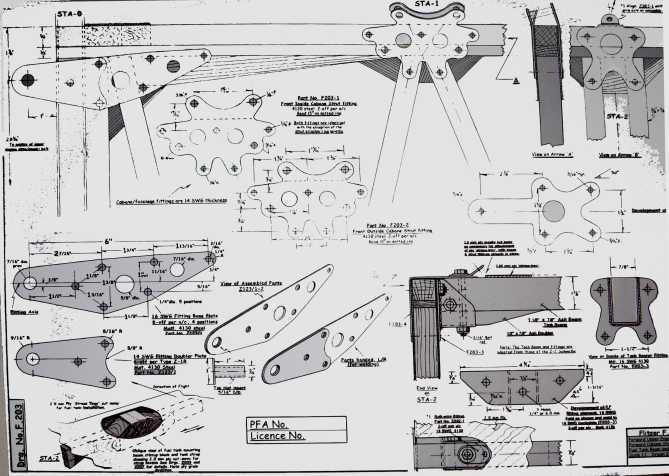

Group,

Here's another F.2 sheet for interest. Unfortunately it's a little indistinct due to attempts to improve contrast on the photograph in some areas, but gives the general idea of what the front upper engine mount lugs, cabane and fuel tank fittings look like.
